- Version Specific Models - Will work for these models but are version specific; Razor E300 (Versions 1-35) and MX350 (Versions 9 and up Only)
- Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.)
- Wide Compatibility – The universal design of this motor allows it to fit a wide variety of scooters and bikes
- Powerful Motor – This 24 volt DC motor features an 11 tooth #25 sprocket and produces a whopping 250 watts of power and 0.86 N-m of torque with a maximum rated speed of 2750 RPM
- High Quality – Motors are made of high quality parts and components
- Manufacturer Part Number – Razor part numbers: W13113099030 (E300); W15125090030 (Chopper); W15128050030 (MX350/MX400); W15130640030 (Pocket Mod/Sport Mod); W15120010030 (Pocket Rocket)

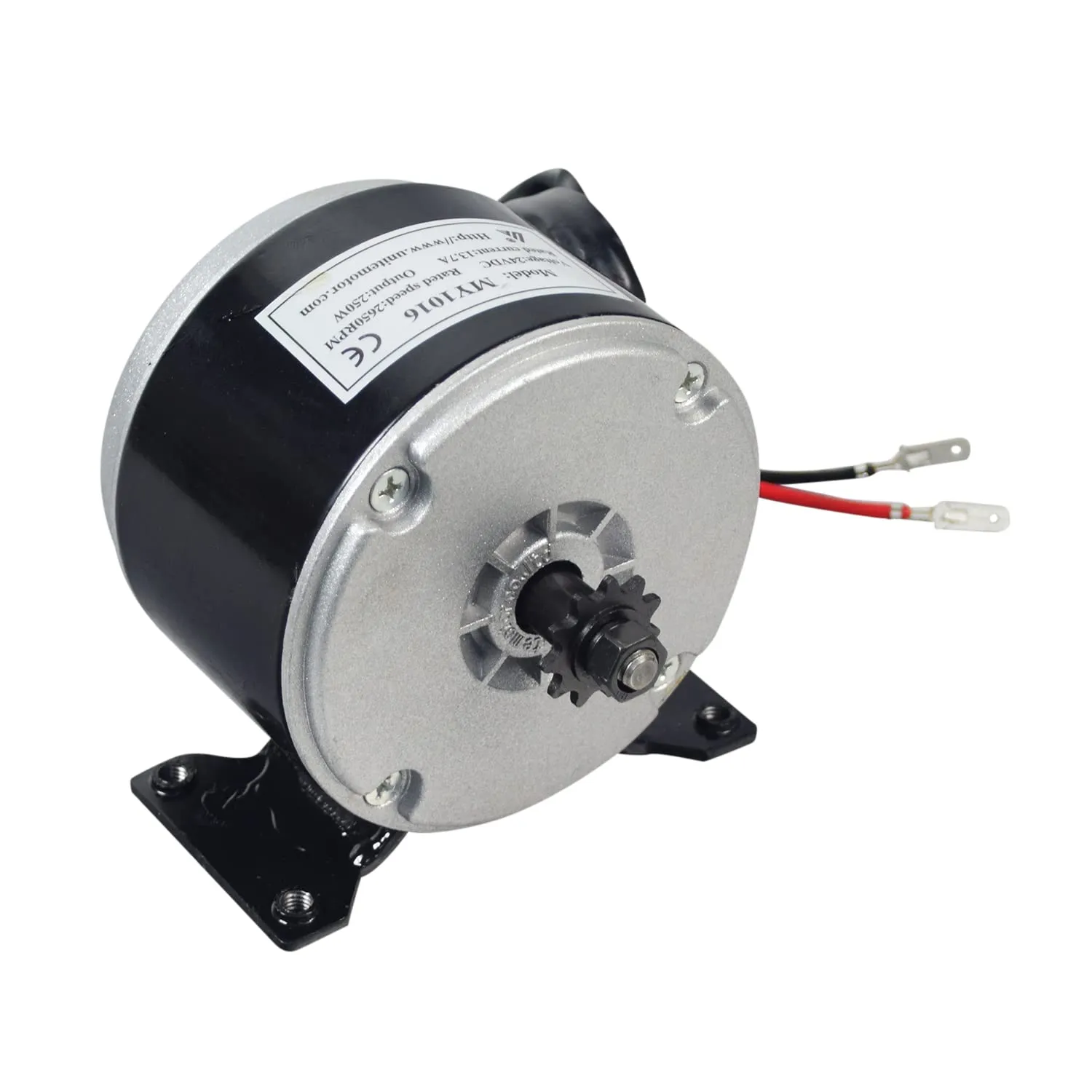

Do you have a Razor E300 (versions 1-35), Mini Chopper, MX350 (versions 9 only), Pocket Mod, Dirt Rocket, or Sport Mod? If so, this AlveyTech replacement 24 volt 250 watt MY1016 electric motor with chain sprocket may be the perfect replacement for the current motor on your scooter or bike. It is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires and is compatible with many electric bikes and scooters. This brush-type electric motor manufactured by the Unite Motor Company has a speed rating of 2600-2850 RPMs and a rated current of 13.5 - 13.7 amps. It also includes a #25 chain drive gear sprocket. Add this motor to your cart and order yours today!
MODEL COMPATIBILITY
Razor: E300; E300S; E325; Mini Chopper; MX350 Dirt Rocket; MX400 Dirt Rocket; Pocket Mod Bella; Pocket Mod Betty; Pocket Mod Bistro; Pocket Mod Blossom; Pocket Mod Chrissy; Pocket Mod Daisy; Pocket Mod Hannah Montana; Pocket Mod Kiki; Pocket Mod Sweet Pea; Pocket Mod Vapor; Pocket Rocket; Sport Mod.
SPECIFICATIONS
Motor model: MY1016
Type: Brush
Voltage: 24V DC
Rated speed: 2750 RPM
Motor torque: 0.86 N-m
Rated current: 13.5-13.7 Amp
Sprocket: 11 tooth #25 Chain
Output: 250W
- Is Discontinued By Manufacturer : No
- Product Dimensions : 6 x 6 x 5 inches; 4 Pounds
- Date First Available : January 27, 2017
- Manufacturer : AlveyTech
