- 【Brushless Motor Kit】Brushless Motor Speed Controller, E-Brake, 3-Speed (Low Mid High Speed), Reverse Functions, Indicator Light And Power Lock Functions.
- 【Motor Parameters】Model: MOTOR MY1020; Motor Type: High-Speed BLDC Brushless DC Electric Motor; Output: 3000W; Rated Speed: 4900-5800RPM (Max); Weight: 4.8kg/10lb; Diameter: 105mm/4''; Rated Torque: 5.4N.m; Applicable: Electric Scooter, Ebike, Folding Bike, Small E-Moto, machine, MIni Electric Car, DIY; Installation: Center, MID DRIVE; Application Chain: T8F Sprockt/Chain.
- 【Easy To Operate】The handle is equipped with back and forth running and gear conversion buttons, you only need to gently press the button to complete the running direction and running speed conversion, which is very easy and convenient. The handlebar throttle of this brushless motor kit adopts an uneven anti-slip design, which makes it not easy to slip off.
- 【High Speed & Torque】Using precision winding technology, the motor power is instantly increased by 30%. 4900-5800RPM Adjustable speed, low noise, high torque.
- 【Widely Application】Suit For Electric Scooter, Mini Electric Motorcycle DIY Engine Kit, Razor Push Scooter, Ebike Bicycle, Go Karts, E-bike, E-Tricycle,Mid Drive Motor Kit, Complete Set, DIY Engine System, Cycling Part and more.
About Motor
1.Model:KUN-RAY MOTOR MY1020
2.Motor Type:High-Speed BLDC brushless Motor
4.Out put /W:3000W
5.Rated Speed:4900r/min 5800RPM(MAX)
6.Weight:4.8KGS
7.Diameter:105mm
8.Rated Torque/N.m:5.4N.m
9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY
11.Installation: Center,MID DRIVE
12. Application Chain:T8F Sprockt /Chain
13.motor size:11*11*10.2cm
14.weight:6.6kg
About Controller
1.Power:3000w
2.Voltage:60-72V DC
3.Current:60A
4.Mosfet:24WF
5.Under Voltage turn the 1.1-3.7V
6.Brake Low Level
Packing List

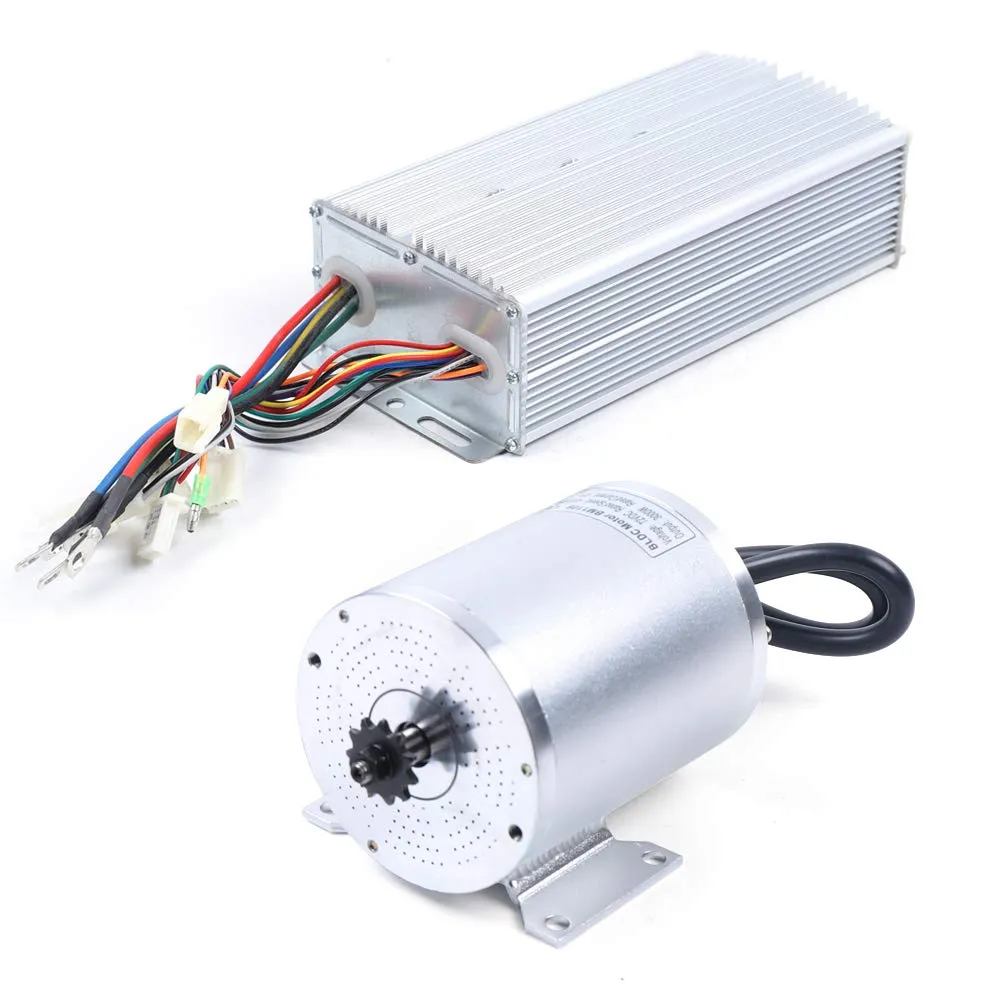

1pcs 72v3000w brushless motor
1pcs 72v3000w Brushless Controller
- Product Dimensions : 4.33 x 4.33 x 6.53 inches; 15.43 Pounds
- Date First Available : November 28, 2023
- Manufacturer : MuChaIOAK
- Country of Origin : China
