- Speed(RPM): 3V 45RPM
- Commutation: Brush
- Type: Micro Motor
- Output Power: 0.1 W
Item Description:
GW12N20 DC 6V 12V smallest in the maket Worm gear motor Low speed Ultra mini gear box Reversible Electric engine for Smart car Robot Lock

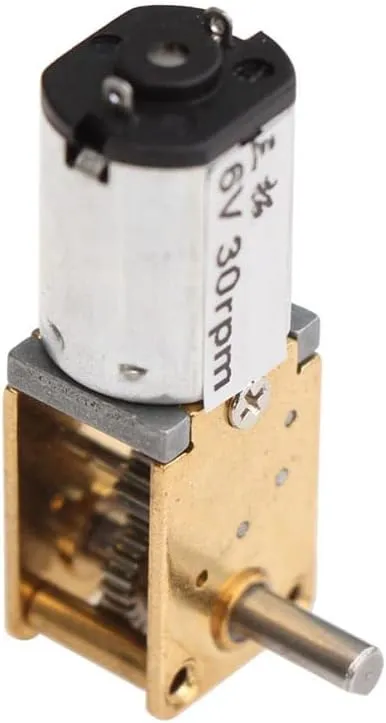

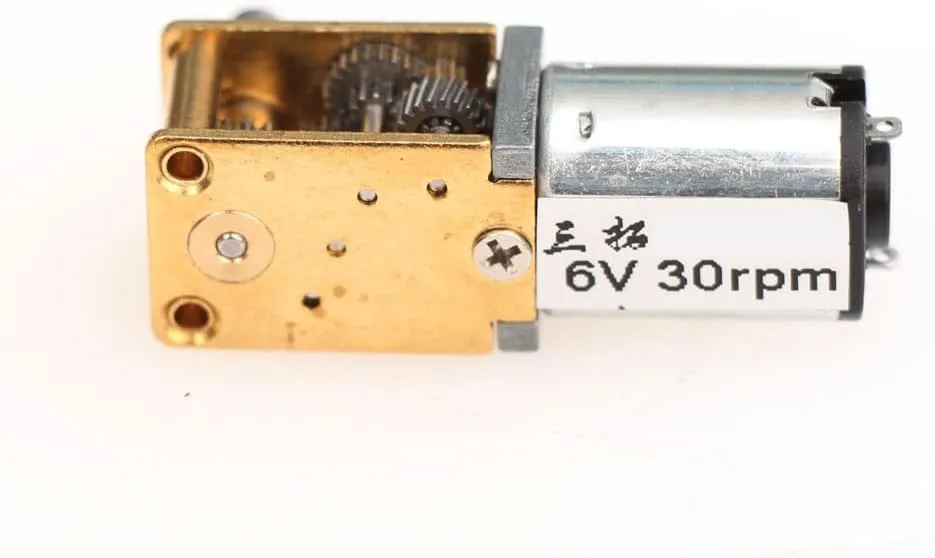

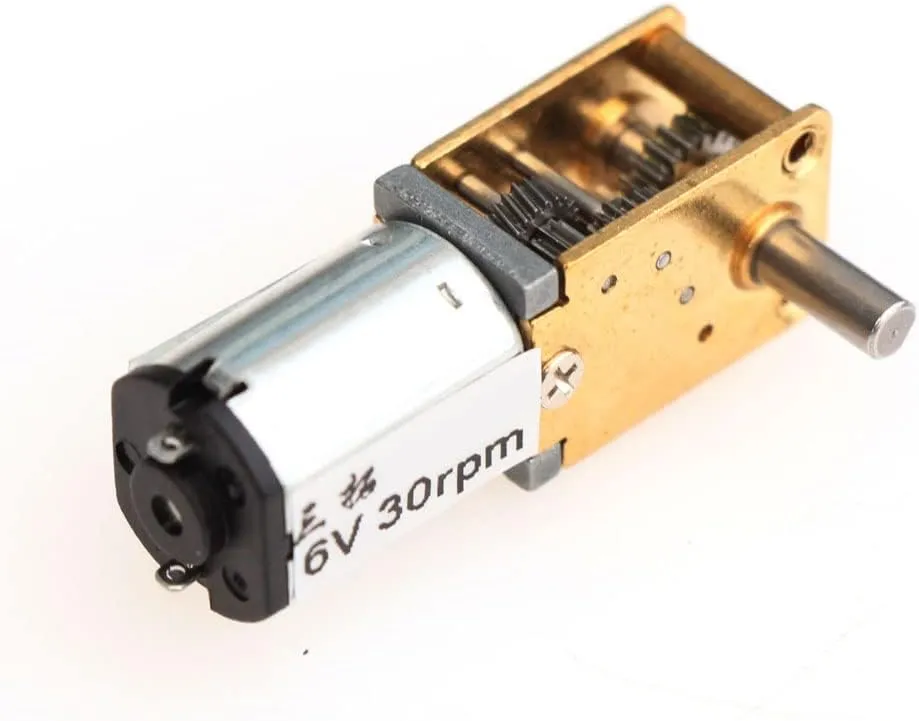

GW12N20 Mini DC Worm Gear Motor
Item|Voltage
(V)|No Load
Speed
(r/min)|Loading
Speed
(r/min)|Rated
Torque
(N·cm)|Rated
Current
(A)|Rated
Power
(W)|Dimension
(exclude shaft)|Shaft (mm)|Net
Weight
GW12N20-3-15|3V|15|11|1|80|0.05|35x12x10mm|Single
D shaft|Φ3*8|12g
GW12N20-3-30|30|22|100
GW12N20-3-45|45|34|120
GW12N20-6-30|6V|30|22|2|100|0.1
GW12N20-6-60|60|45|150
GW12N20-6-90|90|65|200
GW12N20-12-60|12V|60|45|3|250|0.1
GW12N20-12-120|120|90|300
DCWorm Gear Motor, reversible, variable and self-lock.
1). With self-locking function, the output shaft can't be rotated by certain force when switching off.
2). Gearbox output shaft and motor shaft are 90 degrees, it's widely in various of occasions that require special install size.
According to these characteristics, Worm Gear Motors are widely in windows and doors opening and household electrical appliances, Car model, Boat model, Robot model, engine, Industry application, house application, home automation,mini winch and other occasions.
More to love:
Rigid coupling|Flexible coupling|Shaft rod & Bearing|Timing belt and pulley
Click here to buy|Click here to buy|Click here to buy|Click here to buy
Sprocket & Roller chain|Gear & Gear rack| controller|Speed controller
Click here to buy|Click here to buy|Click here to buy|Click here to buy
DC Worm Gear Motors Catalogue, click to view more:
How to select a motor.
You should confirm the Voltage, Torque, Structure, Work rule.
Voltage: DC or AC, Voltage v
