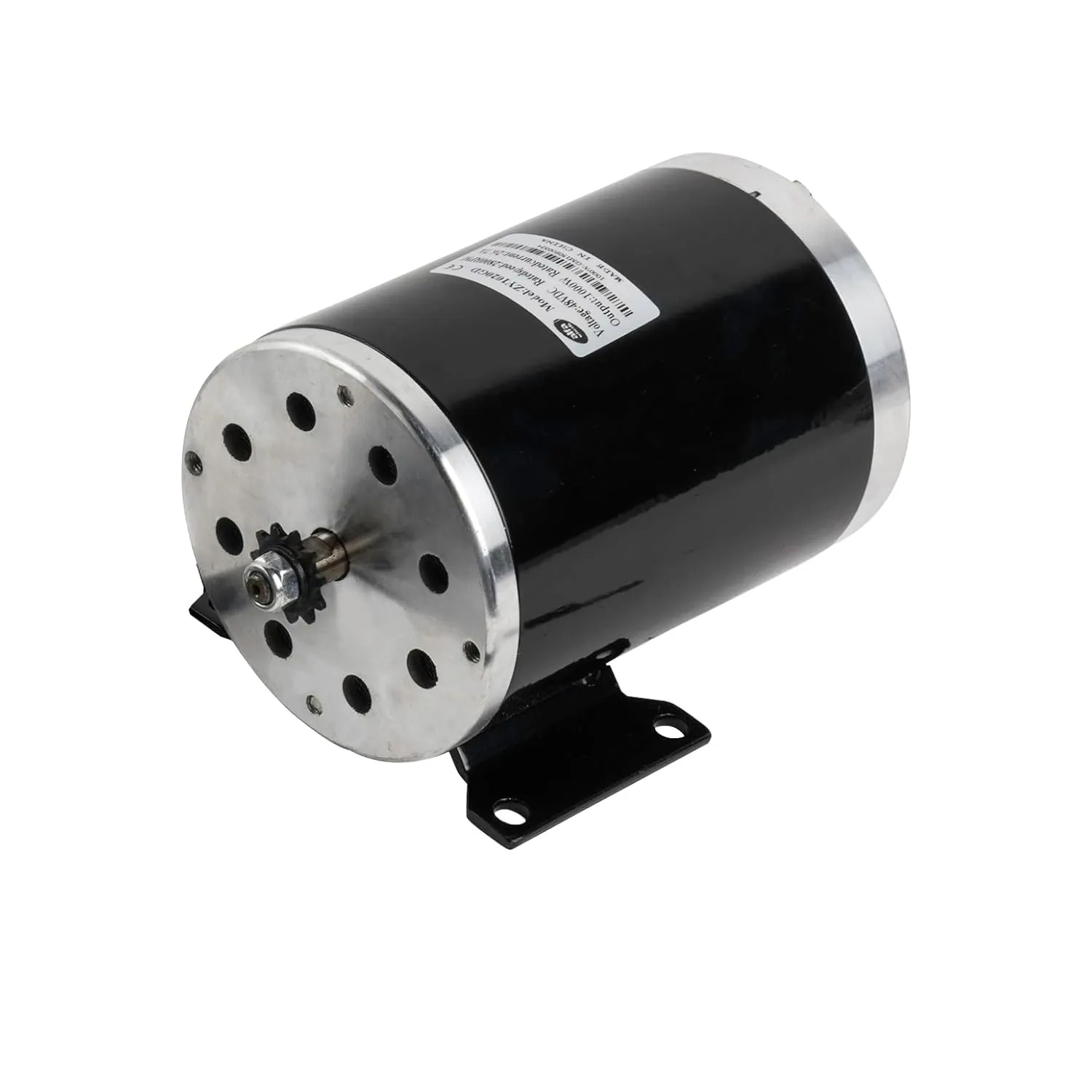

- DC Motor rated 1000 watts, 48 volts
- ZY1020 Motor Dimensions: - Diameter: 4 1/4" - Length (no shaft): 5 1/4" - Length (with shaft): 6 1/4"
- ZY1020 Brush motor comes with a #25 (1/4" pitch) 11T sprocket
- Our ZY1020 motors all come with mounting base. For motors with no base please look for our ZY1020 motors
- Use for electric scooters, eATV, electric GoKart, electric Cart, DIY projects, cruzin cooler
Brand new with warranty. Motor comes with a #25 sprocket. - ZY1020 type motor for electric scooter and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts. Motor Specifications: - 48V DC 20.8 amps - Max 1000 Watt - Max 3000 RPM - Chain drive (11 teeth sprocket) #25 (1/4" pitch) - Type of motor: DC, Brush - Reversible - 12 gauge leads - Permanent Magnet ZY1020 motors are Brushed DC motors widely used in electric scooters, electric go karts. ZY1020 motor is reversible by changing the polarity of the power conection. ZY1020 motors usually replace MY1020 motors. These DC brush motors come in voltages 24V, 36V and 48V and from 500W, 650W, 800W, 1000W.
- Package Dimensions : 11.81 x 5.91 x 5.91 inches; 11 Pounds
- Date First Available : August 28, 2022
- Manufacturer : Alfa Wheels
- Country of Origin : China
