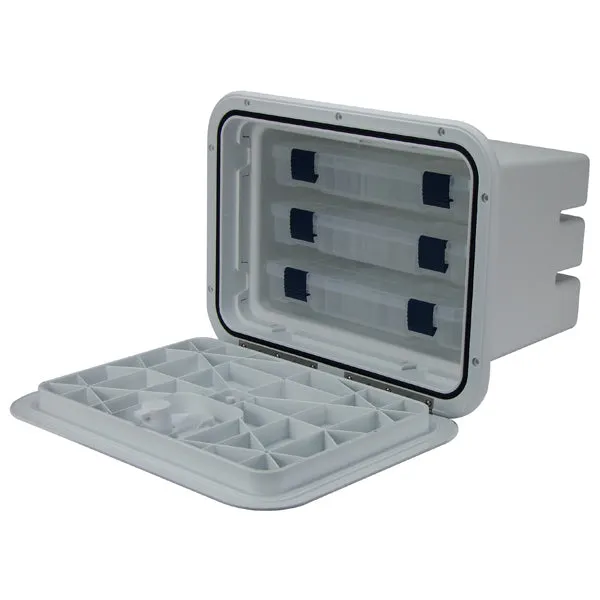

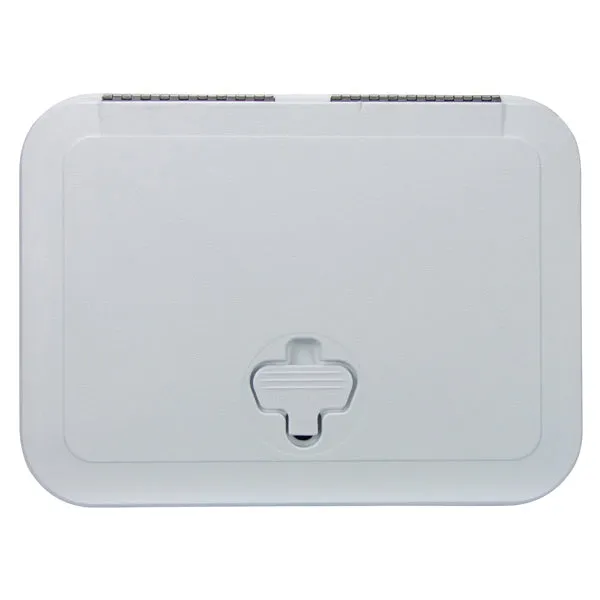

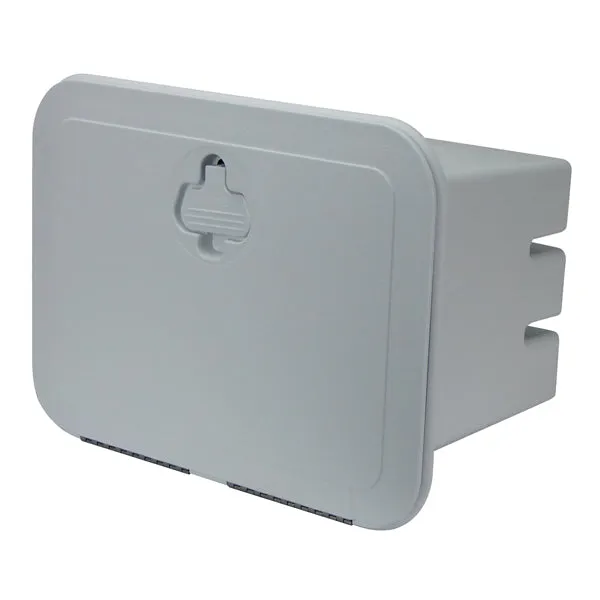

Innovative 3 draw tackle locker is designed for recess mounting. Concealed mounting holes, door opens 180°. 10mmn clearance from start of flange to beginning of screw holes. 316G stainless steel hinge. OEM can screw through the hinge into the deck for added strength and durability. In-laid gasket ensures a good seal every time. Saralon 2 resin handles with a positive stop and click, secured by a 316G stainless steel pin. UV resistant, injection moulded tubs for a lifetime of use.
Specifications:
- Cut out: 235 x 337mm
- Corner radius: 25mm
- Mount screws: 4mm c/s
- Overall size HxWxD: 280 x 383 x 254mm
