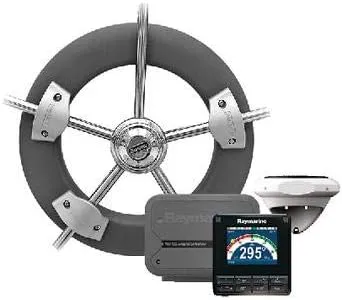

EV-100 Wheel Evolution Autopilot
Features:
- A complete autopilot-in-a-box
- Evolution Ai for superior performance
- No calibration required
- Quick and easy installation
- Fits most types of sailboat wheels
- Simple, robust clutch engagement
- For boats up to 16,500 lbs (7,500 kg)
- For 12V DC power systems
- Includes p70 Autopilot Controller
Includes:
- EV-1 Sensor Core
- p70 Autopilot Control Head
- ACU-100 Actuator Control Unit
- Wheel Drive
- Evolution Cabling Kit
- EV Unit O-Ring Pack (set of 2)
- Wall Mounting Bracket
The EV Sensor Core
At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.
Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.
The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.
Features:
- Precision monitoring of heading, pitch, roll, and yaw allow
