- Dual-way brushless esc support 5-12s lipo.
- Input Voltage 18V-50.4V, Continuous Current 100A, Peak Current 180A
- Support more protocols like Dshot (All), PWM, Oneshot, Multishot, etc.
- Functions: Forward, reverse, braking
- Low voltage protection, temperature protection, locked rotor protection, and current protection.
- Supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.

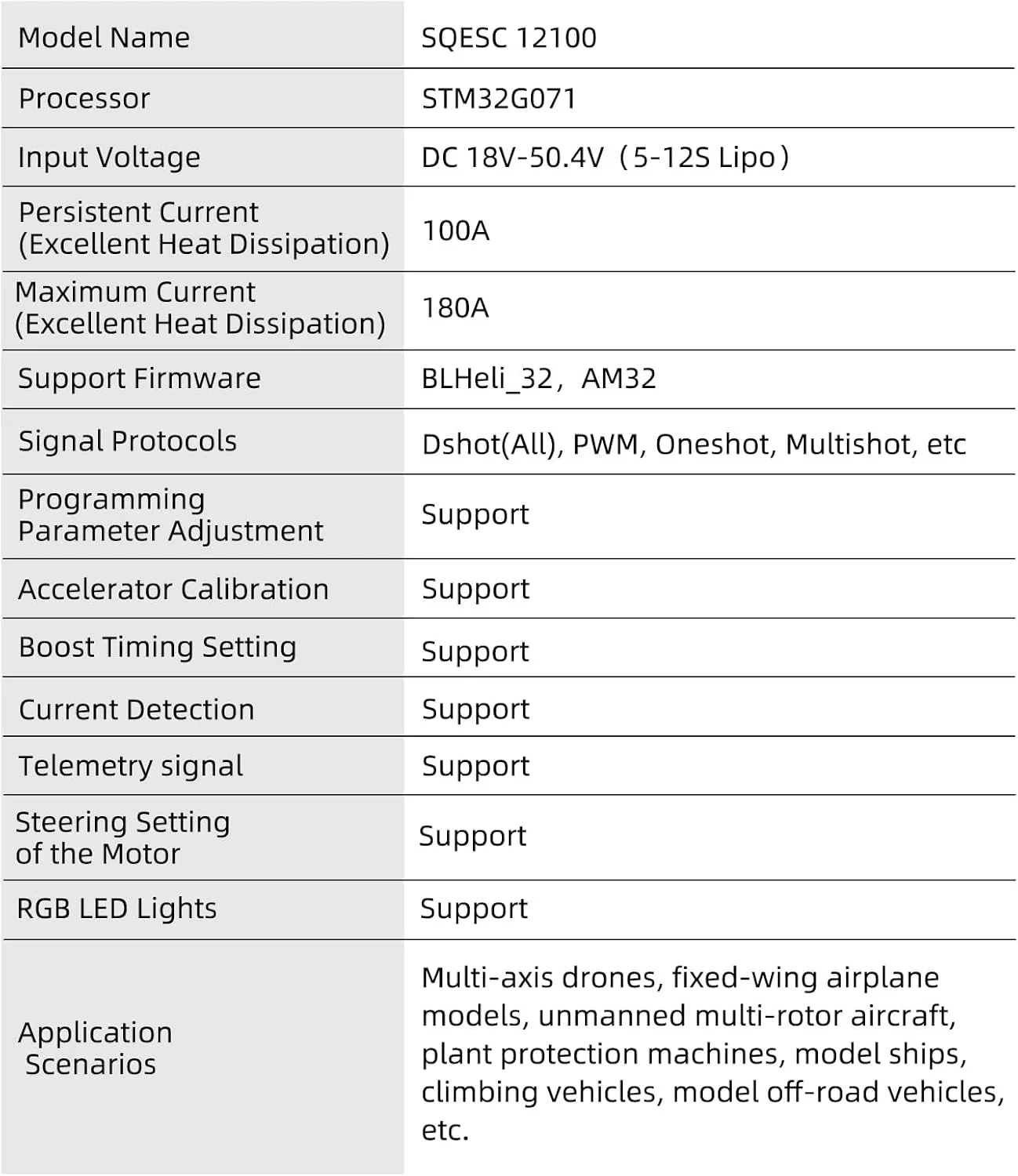

Parameters

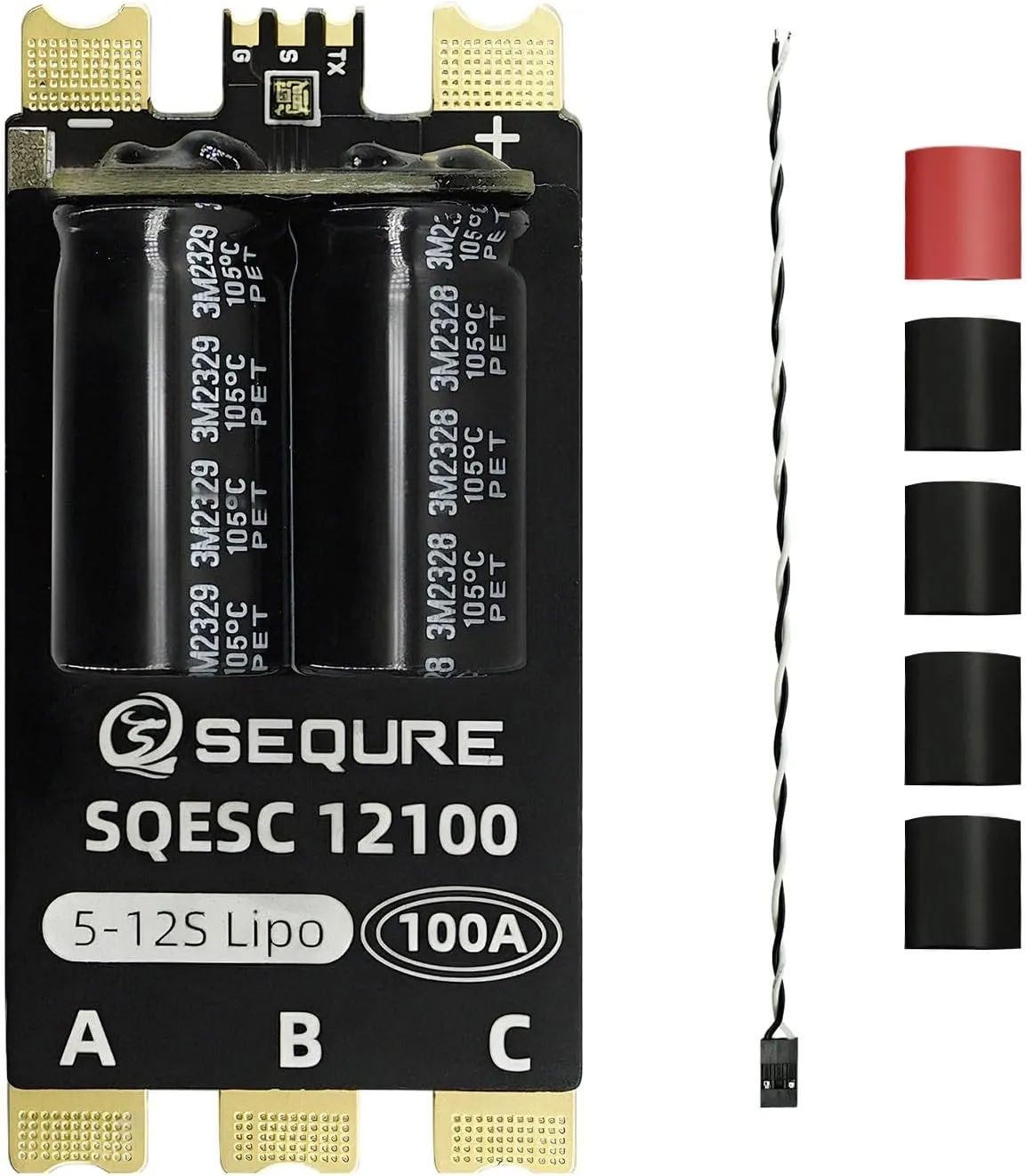

Model: SQESC 12100
Processor: STM32G071
Input voltage: DC 18V-50.4V(5-12S Lipo)
Continuous current: 100A
Maximum current: 180A
Support firmware: BLHeli_32
Signal protocol: Dshot (All), PWM, Oneshot, Multishot, etc.
Programming parameter adjustment: Support
Throttle calibration: Support
Timing angle setting: Support
Current detection: Support
Telemetry signal: Support
Motor steering settings: Support
RGB LED color lights: Support
Application scenarios: Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers.
Main Features
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports functions like forward, reverse, braking.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when powered on, supports all Dshot signals, and supports signal protocols such as PWM, Oneshot & Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.
