- Ramset Sliding Gate Operators - Ram 5000 UL 3/4hp
- Max Gate Size 45' Max Gate Weight 2000 lbs.
- Motor Continuous duty. 3/4 Hp, 120VAC, 50/60 hz
- Control Board: easy to configure solid state board with features such as L.E.D.
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ramset 5100 Gate Operators
GENERAL SPECIFICATIONS:
Max gate size: 45'
Max gate weight: 2000 lbs.
Motor: Continuous duty. 3/4 Hp, 120VAC, 50/60 hz
Chassis: Heavy duty metal cut and formed.
Finish: Gold/zinc plated to inhibit corrosion.
Gate Stops: Limit switches
Right or left hand operation: A dip switch changes direction for right or left hand operation.
Chain: 20ft of nickel/plated chain to inhibit corrosion.
Cover: Polyethylene, high-impact resistance.
Color: Charcoal gray
Shipping Weight: 150lbs.
Emergency release: Chain release or battery backup system.
Dimensions: H:25" - L:18 1/2" - W:16 1/2"
Travel speed: 1 foot per second

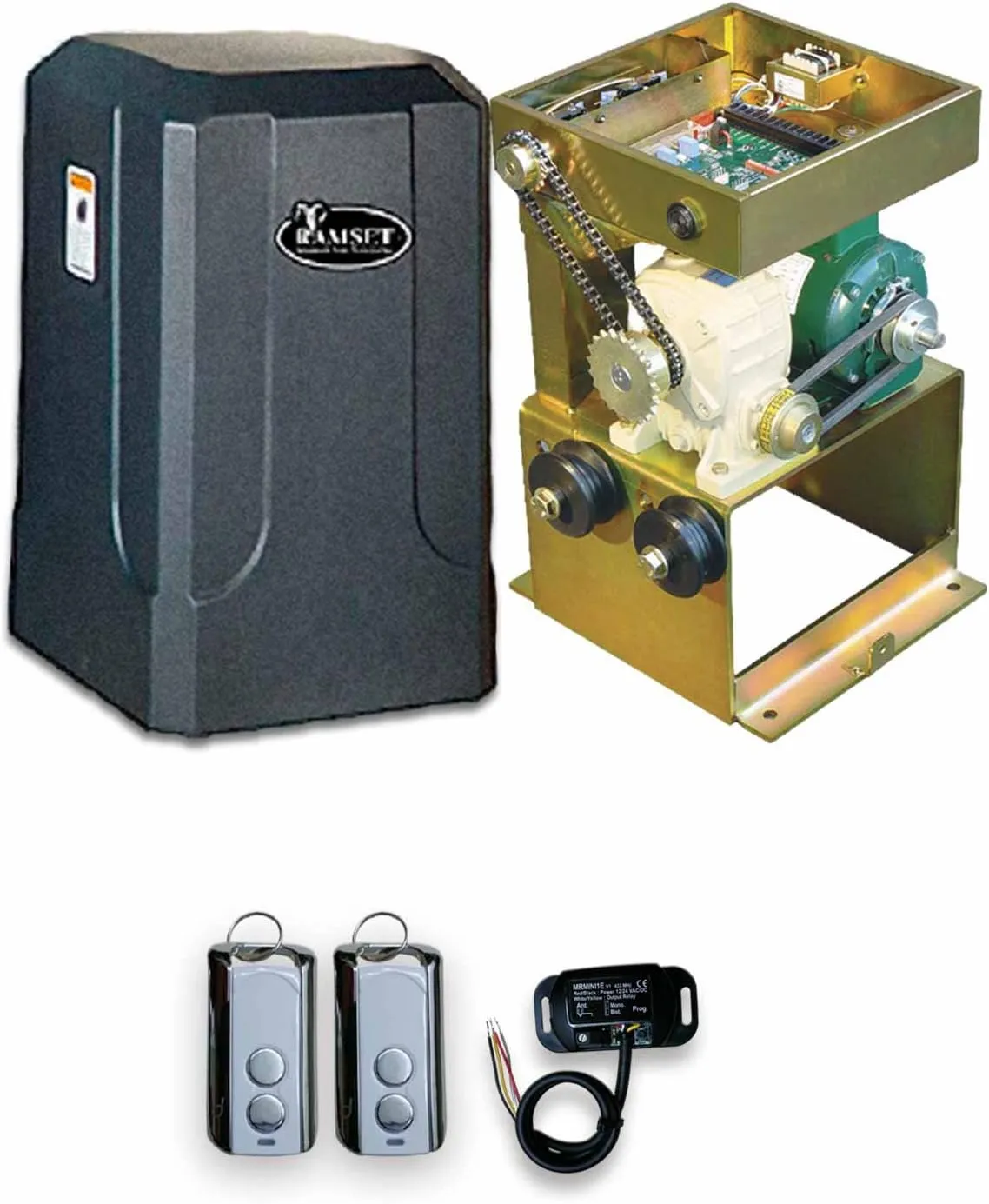

Ram 5100 gate Openers kit 1
Include:
Ram 5100 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
